Problem: 1411. 给 N x 3 网格图涂色的方案数

1. 有向图路径数量

在这个问题中，我们可以将网格图的每一行都可以抽象成一个顶点(vertex),我们可以将这个问题抽象成:

有向图G（V,E)

• V代表顶点集，

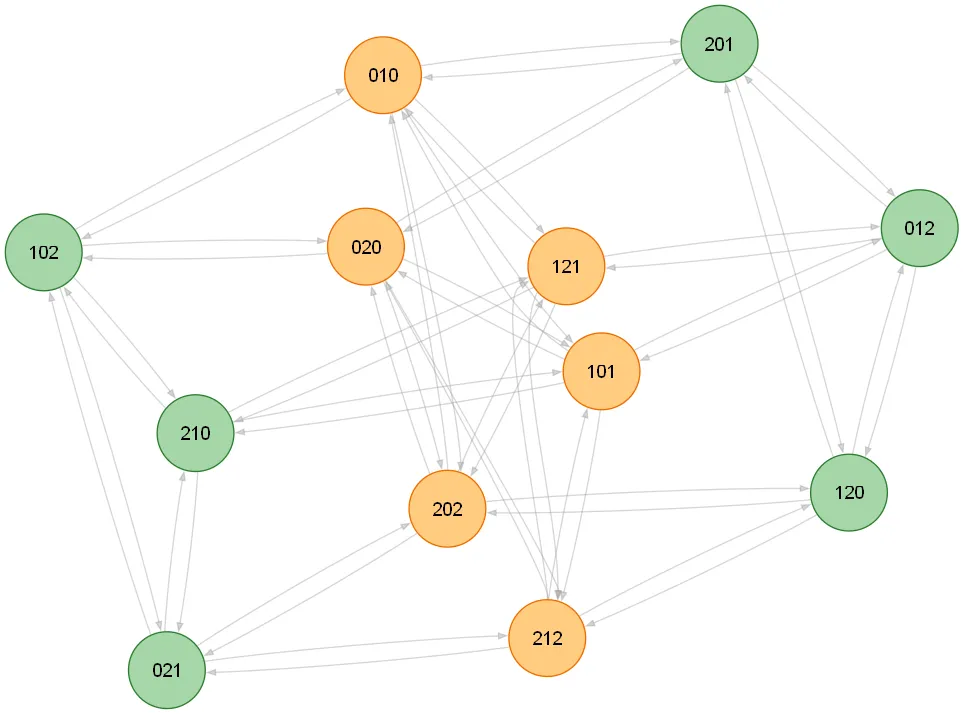

• E代表边集，其中的每个元素代表{from_state,to_state},from_state的下一行可以是to_state 如下图所示:

我们要求的就是: 从这个图中的每个点出发，能够走出多少条长度为n - 1的路径

Code

cpp

#include <vector>
#include <ranges>
#include <algorithm>
#include <print>
using namespace std;


class Solution {
private:
    static bool check_state(int state){
        int left = (state / 9) % 3;
        int mid = (state / 3) % 3;
        int right = (state) % 3;
        if((left == mid) or (right == mid)){
            return false;
        }
        return true;
    }
    static bool check_edge(int first_state,int second_state){
        int first_color[3] = {(first_state / 9) % 3,(first_state/ 3) % 3,(first_state) % 3 };
        int second_color[3] = {(second_state / 9) % 3,(second_state/ 3) % 3,(second_state) % 3 };
        for(int i = 0;i < 3;i++){
            if(first_color[i] == second_color[i]){
                return false;
            }
        }
        return true;
    }

public:
    using ll = long long;
    static constexpr ll mod = 1'000'000'007;
    int numOfWays(int n) {

        vector<vector<int>> state_transition_table(27);
        int cnt = 0;
        for(int first_state = 0; first_state < 27;first_state++){
            if(check_state(first_state) == false){
                continue;
            }
            for(int second_state = 0;second_state < 27;second_state++){
                if(check_state(second_state) == false){
                    continue;
                }
                if(check_edge(first_state,second_state)){
                    state_transition_table[first_state].emplace_back(second_state);
                }
            }

        }
        vector<int> state_sum = state_transition_table |
                            views::transform([](vector<int>& v){ return int{!v.empty()};})|
                            ranges::to<vector<int>>();
        for(int step = 0;step < n - 1;step++){
            vector<int> pre_state_sum = state_sum;
            for(int from_state = 0;from_state < 27;from_state++){
                state_sum[from_state] = 0;
                for(int to_state : state_transition_table[from_state]){
                    state_sum[from_state] = (state_sum[from_state] + pre_state_sum[to_state] * 1LL) % mod;
                }
            }
        }
        return ranges::fold_left(state_sum,0,[&](int lhs,int rhs){ return (lhs + rhs) % mod;});
    }
};

复杂度

• 时间复杂度: O(n∗27)
• 空间复杂度: O(n∗5)

2. 顶点聚合

实际上，我们不需要这么多顶点，具体来说，我们可以看到顶点一共有两种模式,即ABA模式和ABC模式。

进一步，我们对图进行收缩，有:

模板元优化

由于本题n的数量较小，且相同的输入，永远会产生相同的结果，所以，可以在编译期就计算完成

Code

C++
#include <vector>
#include <ranges>
#include <algorithm>
#include <print>
using namespace std;

using ll = long long;
inline static constexpr ll mod = 1'000'000'007;
struct TableData {
    int status[5002];
};

inline static consteval TableData init_tables() {
    TableData data = {};

    data.status[1] = 12;
    data.status[2] = 54;

    for (int i = 3; i <= 5000; ++i) {
        data.status[i] = (7 * mod + 5LL * data.status[i - 1] - 2LL * data.status[i - 2]) % mod;
    }

    return data;
}


class Solution {
public:
    static constexpr TableData cache = init_tables();
    int numOfWays(int n) {
        // state[n][ABA] = 3 * state[n - 1][ABA] + 2 * state[n - 1][ABC]
        // state[n][ABC] = 2 * state[n - 1][ABA] + 2 * state[n - 1][ABC]
        return cache.status[n];
    }
};

复杂度

• 时间复杂度: O(1)
• 空间复杂度: O(1)

链接：https://leetcode.cn/problems/number-of-ways-to-paint-n-3-grid/solutions/3871848/cong-tu-lun-jian-mo-dao-ding-dian-shou-s-papq/
